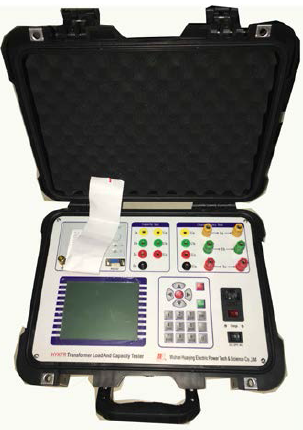

Transformer Load And Capacity Tester HYKFR

Features
1) The tester can measure the transformer load current, load loss, short-circuit voltage, short circuit (load).
2) Three Methods.
3) When doing three-phase transformer no-load, load test, the instrument can automatically determine the wiring is correct, and shows three-phase voltage and current vector map.
4) Single machine can do the following 100KVA distribution transformer full load current experiment; the load test of the distribution transformer below 2500KVA can be completed under one third of the rated current.
5) All the related test results are automatically corrected.
6) 320×240 large screen, high brightness LCD display and touch buttons make the operation more convenient.
7) Come with real-time clock
8) Panel-type thermal printer
9) With power-down storage and browsing features, you can store 500 set of experimental results with computer on-line data transfer.
10) Allow external voltage transformers and current transformers to perform extended range measurement.
